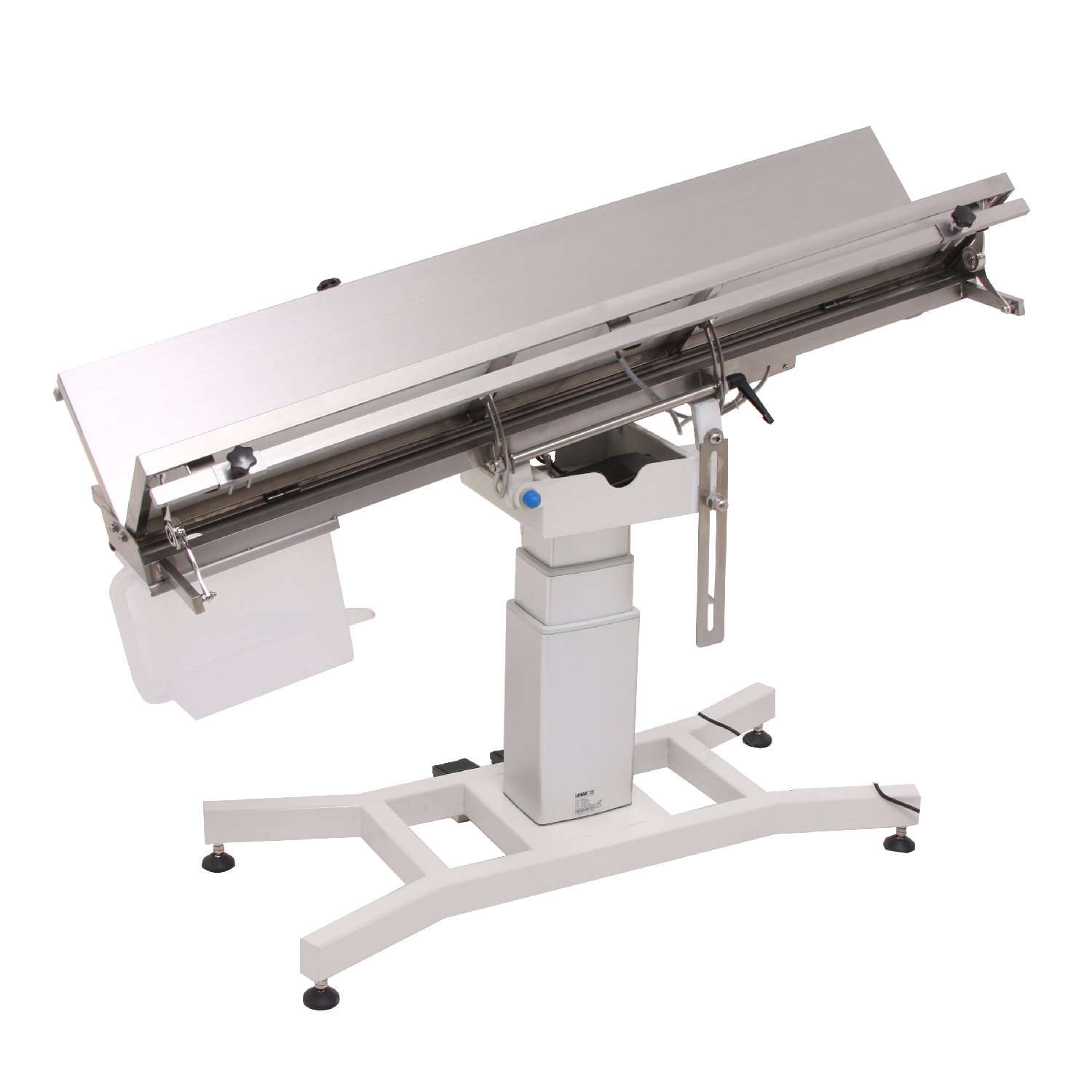

Electric veterinary operating table with adjustable working height, a stainless steel V-shaped tabletop and integrated drainage — available in standard, heated and compact configurations.
Electric height adjustment via a LINAK lifting column
Stainless steel V-shaped tabletop for stable patient positioning
Integrated drainage with a removable, transparent waste bucket
Water-resistant foot pedals for hands-free height adjustment
Standard, heated and compact configurations for different clinical requirements
An operating table is one of the pieces of equipment a veterinary team uses throughout a procedure. Working height, patient positioning, drainage and available space can all affect how the table fits into the surgical workflow.
This model combines electric height adjustment, a V-shaped stainless steel tabletop and integrated drainage, with three configuration options to accommodate different procedures and room requirements.
General veterinary surgery
Orthopaedic procedures
Soft-tissue and abdominal surgery
Imaging and X-ray-assisted procedures
Wound treatment and dressing
Intravenous infusion and post-operative care

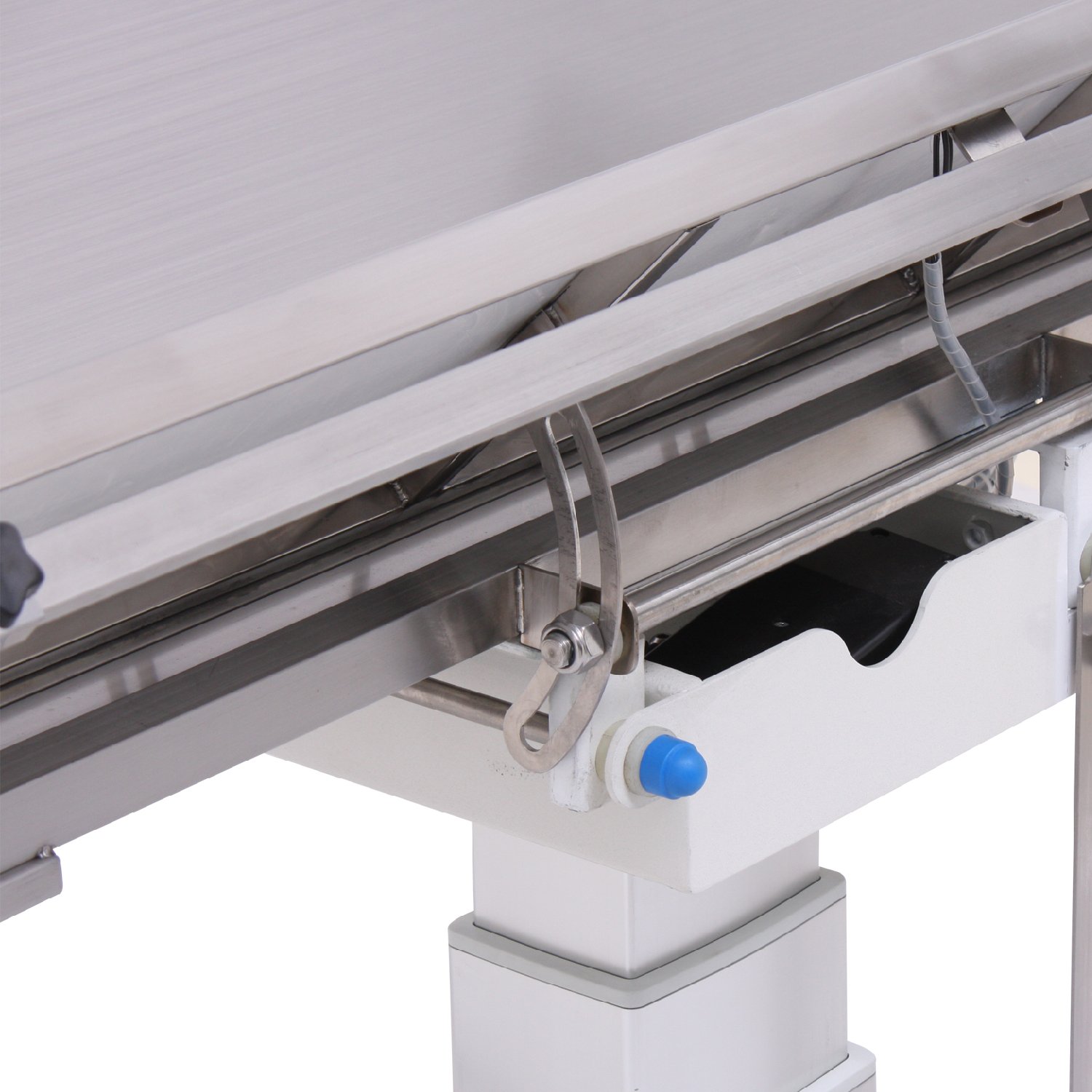

The LINAK electric lifting column allows the working height to be adjusted during a procedure, helping the veterinary team set the table position without manually repositioning the patient.
The V-shaped tabletop supports patient positioning while leaving access from both sides of the operating table.
A buffer hinge and air spring system help control tabletop movement during adjustment.

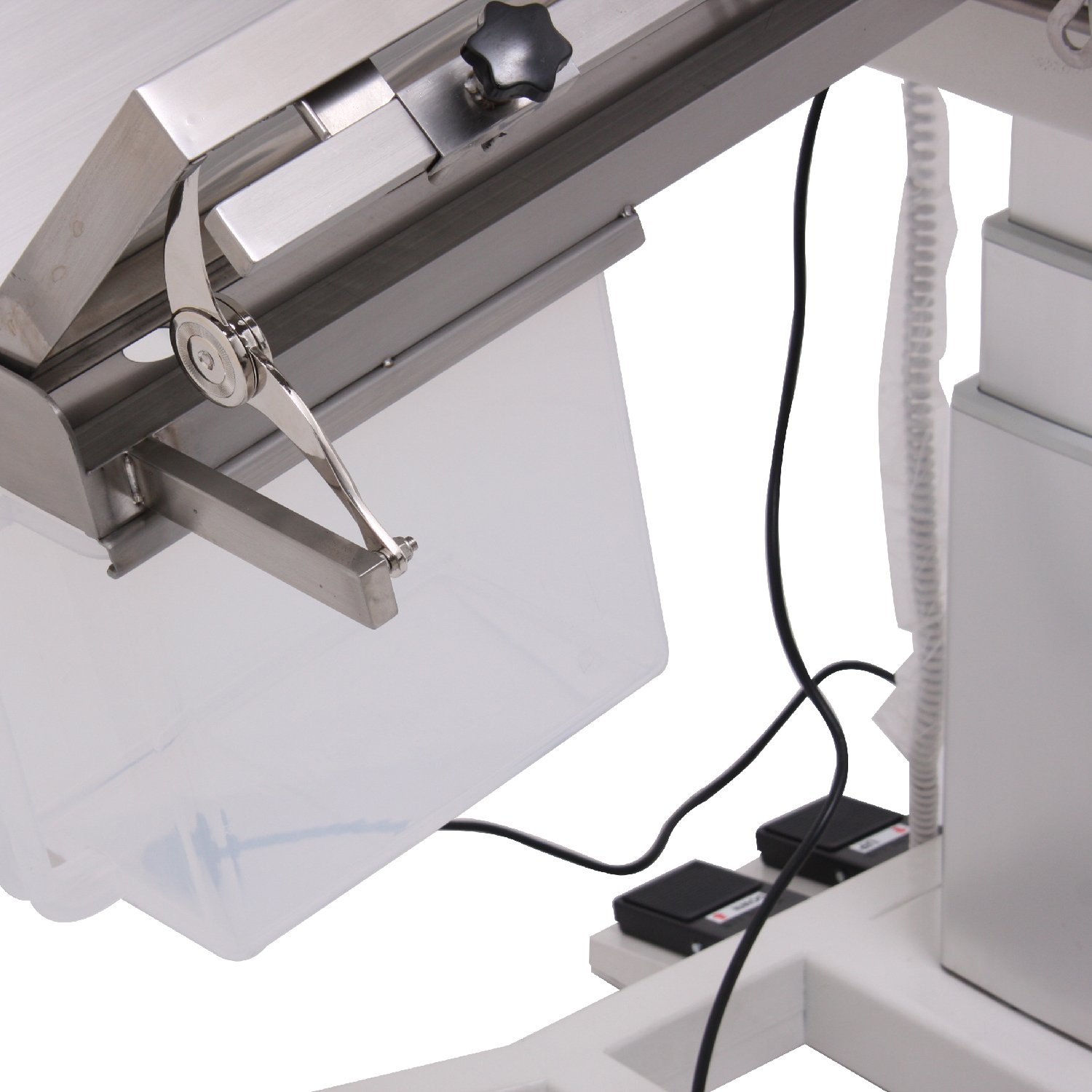

The drainage channel directs fluids into a removable, transparent waste bucket. The fluid level can be checked at a glance, and the bucket can be removed for cleaning.
Water-resistant foot pedals allow height adjustment without using the hands.
An integrated IV pole mount and accessory rails provide mounting points for commonly used equipment. The 3-inch lockable casters allow the table to be moved when required and secured during use.
The three configurations share the same core lifting system, stainless steel tabletop and drainage design. The main differences are:
the base configuration for routine veterinary surgical use.
adds integrated tabletop heating with temperature monitoring. Net weight is 80 kg, compared with 70 kg for the standard version.
uses a smaller tabletop with a removable extension tray where available room is a key consideration.
The right operating table is often determined by the procedures your customer performs, the available room and which configuration fits the intended use.
AquaPlat can provide product information, technical documentation and configuration details to support your evaluation of a specific customer requirement.
It provides an adjustable working platform for veterinary surgical and clinical procedures, including general surgery, orthopaedic procedures, soft-tissue and abdominal surgery, imaging support, wound care and post-operative treatment.
The electric height range is 65–105 cm, adjusted through the LINAK lifting column.
Yes. The heated configuration adds integrated tabletop heating with temperature monitoring.
Yes. The compact configuration uses a smaller tabletop with a removable extension tray for operating rooms where space is limited.
Yes. The standard and compact configurations provide options for routine veterinary practices, while the heated configuration is available where integrated tabletop heating is required.
For veterinary distributors and professional users, AquaPlat provides:
✓ Product options aligned with specific market and customer requirements
✓ Technical documentation and product information
✓ Support in comparing configurations and product options
✓ OEM branding support where applicable
✓ Reliable manufacturing and supply coordination
Whether you are expanding your veterinary equipment portfolio or looking for an additional supplier option, we can help you evaluate suitable products for your market and requirements.
