Clinical ultrasound workstation for veterinary hospitals and larger practices, with cardiac and abdominal Doppler capabilities.
Trolley-Based Configuration
Cardiac & Abdominal Doppler
21.5-inch Display
4 Active Probe Connectors
86 kg
For a veterinary hospital with a dedicated examination room, portability may not be the main priority. A larger display, multiple connected probes and a broader set of imaging and measurement functions can matter more when ultrasound is used repeatedly as part of the daily clinical workflow.
This trolley-based system is built for that environment. It combines a 21.5-inch Full HD LED medical display, 13.3-inch touchscreen, four active probe connectors and a range of Doppler, imaging and measurement functions in one workstation.
Rather than focusing on minimum weight or frequent transport between locations, this configuration is intended for veterinary hospitals, larger practices and professional animal healthcare facilities where ultrasound examinations are carried out in a fixed clinical setting.
The 86 kg system weight should therefore be considered in the context of its trolley-based workstation configuration, rather than compared directly with portable veterinary ultrasound systems designed for mobile examinations.
Cardiac and abdominal imaging are key applications, but the system is not limited to either one.
The available probe configurations also cover reproductive, superficial, musculoskeletal and livestock applications. Species-specific measurement packages are available for bovine, equine, swine, ovine, canine and feline examinations.
With four active probe connectors, different probe configurations can remain available within the same workstation. This allows the system to be specified around the actual examination requirements of a veterinary hospital, larger practice or other professional animal healthcare facility.
The system supports abdominal examinations for dogs, cats, livestock and other animal species, with convex and micro-convex probe options available for different examination requirements.

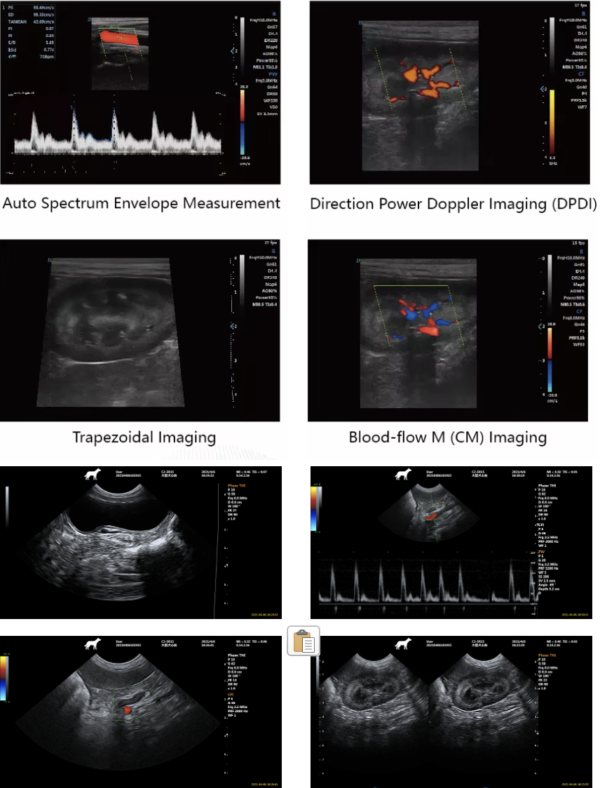

Cardiac examinations can be carried out using Color Doppler, Power Doppler, PW Doppler and CW Doppler functions.
A phased array probe is available for cardiac examinations in small animals and livestock, together with dedicated cardiac measurement functions.
The available convex, micro-convex and rectal probe configurations support reproductive examinations and pregnancy diagnosis.
Species-specific obstetric measurement packages are available for bovine, equine, swine, ovine, canine and feline applications.
The linear probe configuration supports superficial tissue, musculoskeletal and small animal applications.
The back fat probe is available for livestock back fat thickness measurement, while the broader probe and measurement configuration also supports livestock examinations.
The trolley-based workstation can be used in veterinary hospital diagnostics, breeding centres, livestock facilities and research applications, depending on the selected probe configuration and intended examination requirements.
Probe selection is an important part of configuring the system for the intended animal applications.
Abdominal scanning, pregnancy diagnosis and general examinations
Small animal abdominal and reproductive examinations
Superficial tissue, musculoskeletal and small animal applications
Cattle and equine reproductive examinations
Livestock back fat thickness measurement
Cardiac examinations for small animals and livestock
Probe selection can be discussed according to the intended animal applications and examination requirements.
Full digital Color Doppler ultrasound system
Tissue Harmonic Imaging, Compound Imaging and Speckle Reduction Imaging
21.5-inch Full HD LED medical display
13.3-inch high-sensitivity touchscreen
B, M, Color Doppler, Power Doppler, PW and CW Doppler
Species-specific measurement packages
Auto measurement functions
Four active probe connectors
Built-in 128GB SSD
USB external storage support
Trolley-based clinical workstation configuration
Different veterinary ultrasound requirements can lead to different product choices. The most suitable configuration depends on where examinations take place, which animals are being examined, the main clinical applications and how broad the clinical workload is.
For large animal reproductive examinations and mobile veterinary work, the Large Animal Veterinary Ultrasound Scanner provides a more focused portable configuration.
It includes multi-species measurement presets, dedicated reproductive measurement functions and up to 6 hours of battery operation, making it a different configuration from a fixed hospital workstation.
For practices that need a portable system with a stronger focus on cardiac and Doppler examinations, the Portable Veterinary Cardiac Ultrasound Machine with Doppler provides phased array probe support, Color Doppler, Power Doppler, PW and CW Doppler, TDI and multiple probe options in an 8.6 kg format.
For a fixed clinical environment with broader workstation requirements, this trolley-based system provides a 21.5-inch display, 13.3-inch touchscreen, four active probe connectors and a broader range of imaging, measurement and connectivity functions.
The choice is therefore less about which system is universally “better” and more about which configuration fits the way the ultrasound will actually be used.
Yes. The trolley-based configuration is intended for veterinary hospitals, clinics and professional animal healthcare facilities requiring a fixed clinical ultrasound workstation.
A trolley-based configuration is suited to environments where ultrasound examinations are performed in a dedicated clinical room rather than moved frequently between locations.
This model combines a 21.5-inch display, 13.3-inch touchscreen and four active probe connectors in one workstation.
The 86 kg weight reflects its trolley-based workstation configuration. It is intended for fixed clinical environments rather than frequent transport between examination locations.
Yes. The system supports Color Doppler, Power Doppler, PW Doppler and CW Doppler, together with dedicated cardiac measurement functions.
Yes. Convex and micro-convex probe options support abdominal examinations for dogs, cats, livestock and other animal applications.
Yes. The system supports reproductive examinations and pregnancy diagnosis through the available convex, micro-convex and rectal probe configurations.
The available obstetric measurement packages cover bovine, equine, swine, ovine, canine and feline applications.
The system has four active probe connectors, allowing different probe configurations to remain connected within the same workstation.
Available options include convex, micro-convex, linear, rectal, back fat and phased array probes.
The system includes a built-in 128GB SSD and supports USB external storage.
Yes. USB external storage is supported, together with interfaces including HDMI, DVI, Video, S-Video and RJ-45.
