High-output LED lighting for veterinary surgery, dental procedures and clinical examination, providing up to 160,000 lux at 1 m, Ra 98 colour rendering and an adjustable 16–30 cm light field.
Up to 160,000 lux at 1 m for surgical and procedure lighting
Ra 98 colour rendering for clear observation of tissues and surfaces
Adjustable colour temperature from 3,000 to 5,500 K
Adjustable 16–30 cm light field with a 70–140 cm working distance
Sterilizable handle designed for repeated clinical use
18-LED configuration combining 12 white and 6 yellow LEDs
Surgical and dental procedures require controlled illumination that can be positioned and adjusted as the working area changes.
This model combines high light output with adjustable colour temperature and light-field control, giving veterinary teams more flexibility across routine surgery, dental work, wound treatment and clinical examination.
The light can be used across several common veterinary procedure areas:
The adjustable light field is particularly useful when the size or position of the working area changes during a procedure. Focus can be adjusted through the handle without repositioning the entire light head.
The light field can be adjusted from approximately 16 to 30 cm, with a working distance of 70–140 cm.
This allows the illuminated area to be adapted to different working positions rather than relying on a fixed field size.

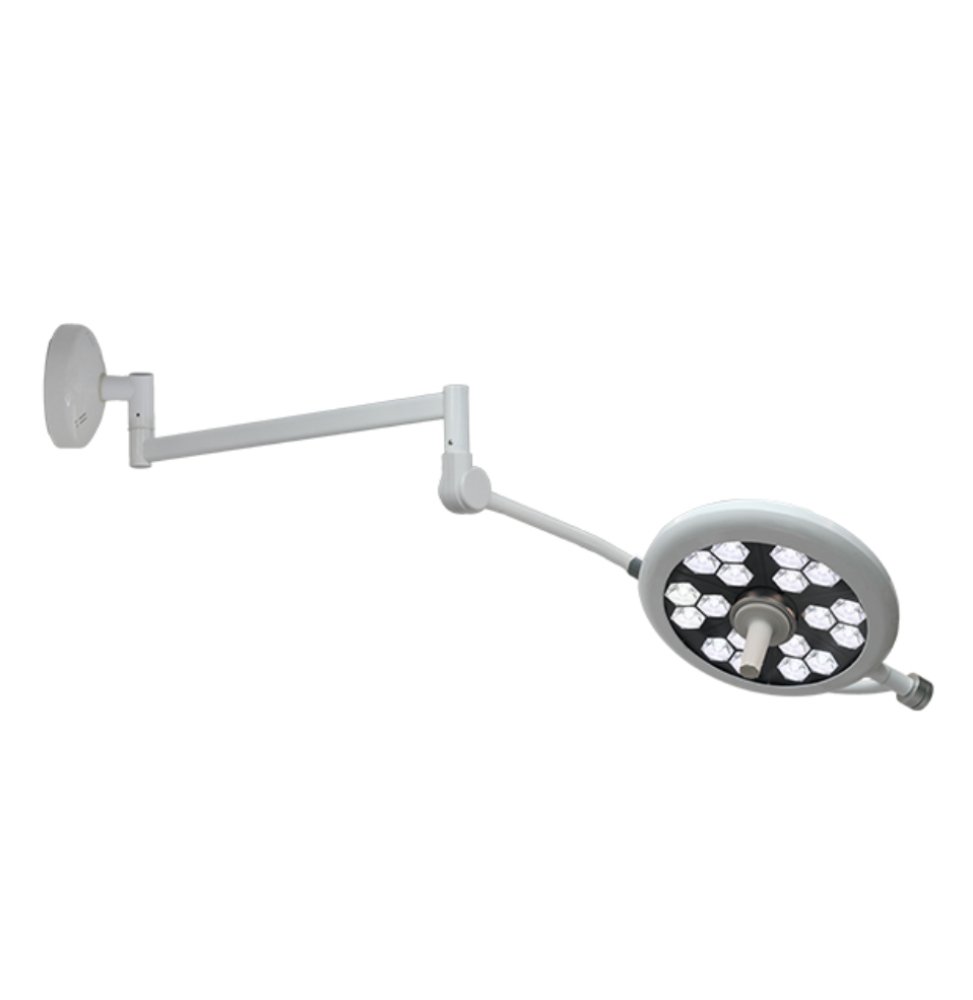

The 43 cm aluminium alloy light head uses an integrated LED and control system and is intended for long-term daily use in veterinary clinical environments.
The external surfaces are designed to be easy to clean, while the sterilizable handle supports routine infection-control procedures. Optional disposable handle covers may also be available depending on the clinic’s workflow.
The design also takes laminar airflow environments into consideration. The available product information indicates that DIN 1946-4 design requirements were considered in relation to laminar airflow compatibility. This page does not make a separate DIN 1946-4 certification or compliance claim.
The combination of high output, adjustable colour temperature and variable light-field size gives this model a broader range of adjustment than a basic examination light.
It is also configured with 18 LEDs using a combination of white and yellow LEDs, while the sterilizable handle and easy-clean construction address practical requirements around repeated clinical use.
For distributors, this places the model between a general examination light and a dedicated operating-room light range, depending on the intended application and installation.
The main difference is how the two models are intended to be used. For detailed specifications, please see the Veterinary LED Examination Light product page.
The choice depends on the clinical work, room setup and level of lighting control required rather than simply choosing the model with the higher specification.
This model may be worth considering for:
Yes. The model is intended for routine veterinary surgical and procedure applications, including soft tissue surgery and dental procedures.
Yes. It can be adjusted from 3,000 to 5,500 K.
Yes. The light field diameter can be adjusted from approximately 16 to 30 cm using the handle-based focus control.
Yes. The sterilizable handle is specified for approximately 350 sterilization cycles.
Yes. Veterinary dental procedures are among the intended applications.
The available product information indicates that laminar airflow compatibility was considered in the design, with DIN 1946-4 design requirements taken into consideration. No separate DIN 1946-4 certification claim is made here.
This model offers higher maximum illumination, Ra 98 colour rendering, a wider colour-temperature adjustment range and an adjustable 16–30 cm light field. It is therefore better suited to applications where more control over the working light is required. For a direct comparison, see the Veterinary LED Examination Light.
Where a customer needs more than a general examination light but does not necessarily require a highly specialised surgical-light configuration, this model can be considered as an additional option.
