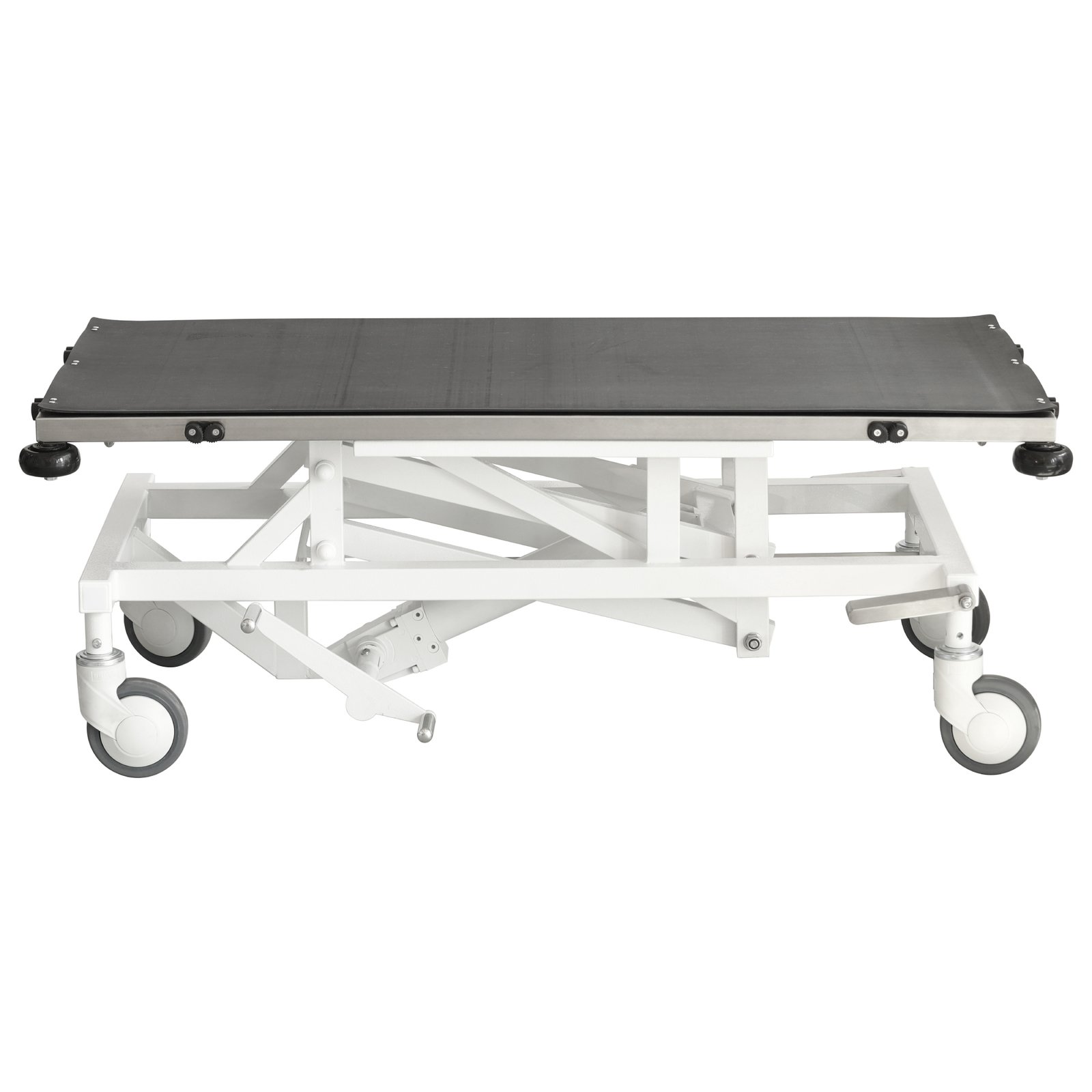

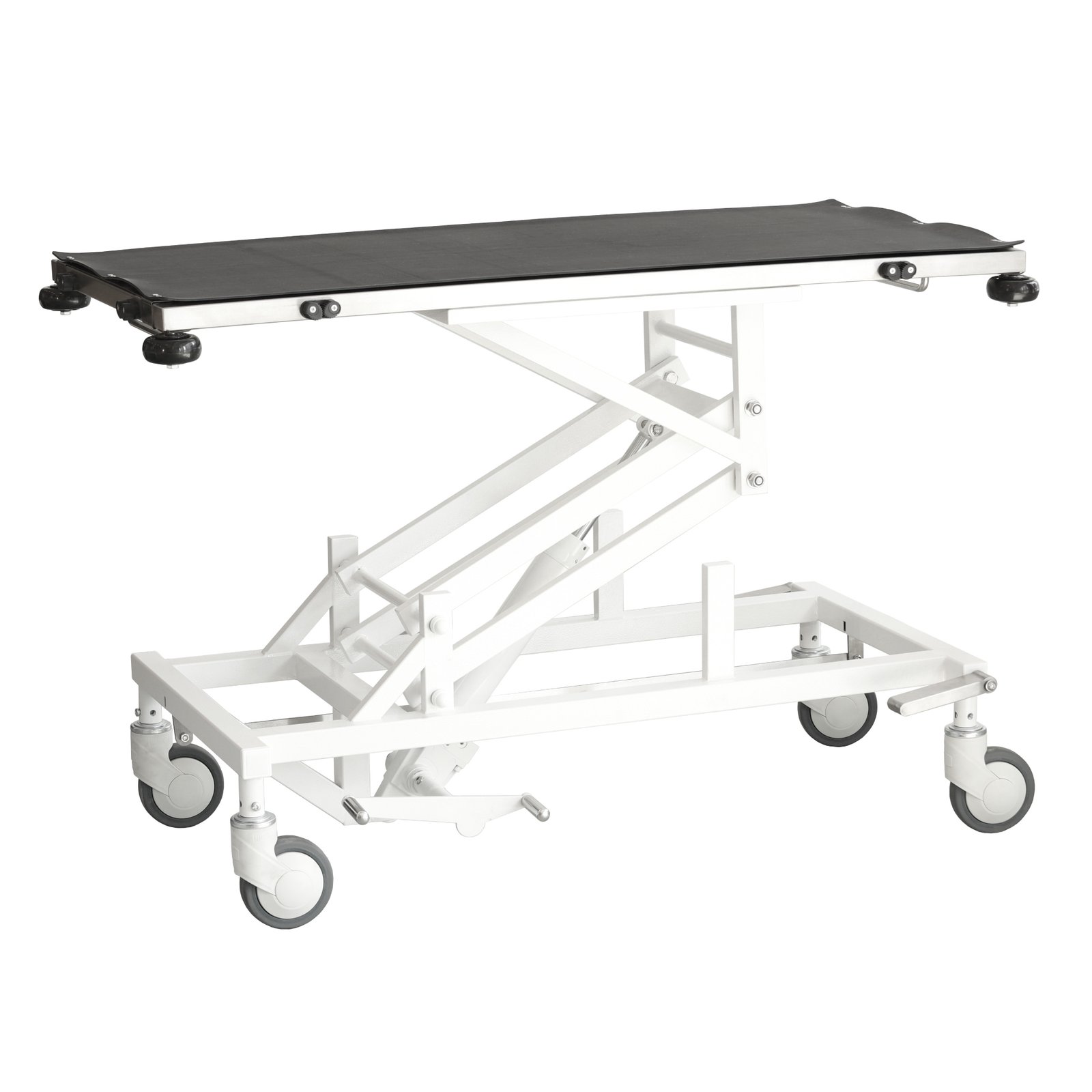

Hydraulic veterinary transfer table for patient movement, positioning and examination support, with 47–100 cm height adjustment and a maximum load capacity of 200 kg.
47–100 cm
304 Stainless Steel
Integrated Wheel System
Patient movement is part of everyday work in many veterinary clinics. Patients may need to be moved between examination, treatment and recovery areas, while the working height may also need to change depending on the task.
Its hydraulic height adjustment from 47 to 100 cm raises or lowers the working surface without electrical power. The integrated wheel system supports movement and positioning, while the 304 stainless steel construction and removable anti-slip mat are suited to regular clinical use.
With a maximum load capacity of up to 200 kg, the table is designed for patient transfer and positioning across a range of veterinary applications.
An examination table is primarily used as a working surface for examinations and procedures. A transfer table has a different focus: moving and positioning the patient within the clinic.
This model is particularly relevant where veterinary teams need:
The table height can be adjusted from 47 to 100 cm using the hydraulic lifting system.
The system does not require electrical power for height adjustment, providing an option for areas where a powered examination table is not required.
The table uses 304 stainless steel for its main structure.
The material provides a durable structure for regular veterinary use and supports routine cleaning and maintenance.
The removable anti-slip mat provides a more secure surface for the patient during movement and positioning.
It can be removed when the table surface needs to be cleaned or maintained.
The integrated wheel system supports braking, turning and straight-line guidance.
This allows the table to be moved and positioned within the clinic while giving the operator control over its movement.
Hidden grips beneath the table provide convenient hand positions when moving or positioning the table.
The table supports a maximum load of up to 200 kg.
This is higher than the 100 kg safe working load specified for the AquaPlat electric examination table configurations.
Patient transfer between examination, treatment and recovery areas
Routine veterinary examinations
Patient positioning during clinical procedures
Post-operative patient movement and care
Patient movement within veterinary clinics and hospitals
The right table depends on how it will be used.
If the main requirement is patient transfer and movement, a hydraulic transfer table provides a different solution from a conventional examination table.
For practices that need a table focused on examination, patient positioning, restraint and minor procedures, see our
Electric Veterinary Examination Table with Double Recessed Top
.
For a different examination-table configuration, the
Electric Veterinary Examination Table with Tilting Function
is another option to consider when tabletop positioning is an important part of the application.
For surgical procedures, see our
Veterinary Operating Tables
.
The goal is not to choose the table with the longest specification list, but to match the table configuration with the way it will actually be used.
No. The hydraulic lifting system adjusts the table height from 47 to 100 cm without electrical power.
The maximum load capacity is up to 200 kg. This is higher than the 100 kg safe working load specified for the AquaPlat electric examination table configurations.
The integrated wheel system supports braking, turning and straight-line guidance, while hidden under-table grips provide convenient hand positions when moving the table.
Yes. The table has a removable anti-slip mat, which can be removed for cleaning and maintenance.
Not necessarily. The two table types are designed around different requirements.
This model focuses on patient movement, transfer and positioning, while an examination table is generally used for examinations and procedures. A clinic may require one or both depending on its workflow.
See the comparison above to explore the different table configurations available from AquaPlat.
The table measures 122 × 60 cm.
For veterinary teams that regularly move patients between different areas of the clinic, the main question is often not which table has the most features, but which table fits the way patients are actually handled.
This model is suited to workflows where patient transfer and positioning are central to the task, with hydraulic height adjustment available without electrical power.
For veterinary equipment distributors, AquaPlat can provide product information and specifications for evaluating this model against your market, customer or portfolio requirements.
For veterinary distributors and professional users, AquaPlat provides:
✓ Product options aligned with specific market and customer requirements
✓ Technical documentation and product information
✓ Support in comparing configurations and product options
✓ OEM branding support where applicable
✓ Reliable manufacturing and supply coordination
Whether you are expanding your veterinary equipment portfolio or looking for an additional supplier option, we can help you evaluate suitable products for your market and requirements.
