Wireless Handheld Veterinary Ultrasound System with Color Doppler

Product Overview

This wireless handheld color Doppler veterinary ultrasound system is designed for veterinarians who need flexible imaging support in clinics, mobile services and field environments.

Combining a compact wireless design with multiple imaging modes, it provides practical ultrasound solutions for small animal examinations, reproductive assessments and general health monitoring across different veterinary applications.

Applications

• Small animal abdominal and cardiac examinations
• Pregnancy diagnosis and reproductive assessment
• Large animal abdominal and thoracic imaging
• Muscle, tendon and superficial tissue examination
• Mobile veterinary services and field examinations
• Breeding farms, zoos and veterinary research applications

Key Features

• Wireless handheld design with lightweight probe body (approx. 120 g)
• WiFi connection to iOS and Android devices
• Multiple imaging modes including B, B/M, CFM, PDI and PW
• Color Doppler imaging for blood flow visualization and tissue assessment
• Puncture guidance with In-Plane and Out-Plane modes
• Measurement tools for pregnancy, distance, area, volume, angle and heart rate
• Built-in preset parameters and image optimization functions
• Wireless charging with continuous operation of ≥2 hours

Probe Options

• Micro Convex Probe
  6.0 MHz, 128 elements
  Suitable for small animal abdominal and cardiac imaging
• High-Frequency Linear Probe
  10.0 MHz, 128 elements
  Suitable for superficial tissue, tendon and vascular imaging
• Phased Array Probe
  2.7 MHz, 128 elements
  Suitable for cardiac and deep thoracic imaging in large animals
• Convex Probe
  3.3 MHz, 80 elements
  Suitable for abdominal and reproductive imaging in large animals
• Linear Probe
  7.5 MHz, 128 elements
  Suitable for muscle, tendon and mammary gland imaging
• Dual Probe
  3.2 / 7.5 MHz, 64 elements
  Suitable for both large animal abdominal and reproductive imaging, as well as muscle, tendon and mammary gland examinations

Technical Specifications

Standard Configuration

• 1 × Wireless ultrasound probe
• 1 × User manual
• 1 × Wireless charger

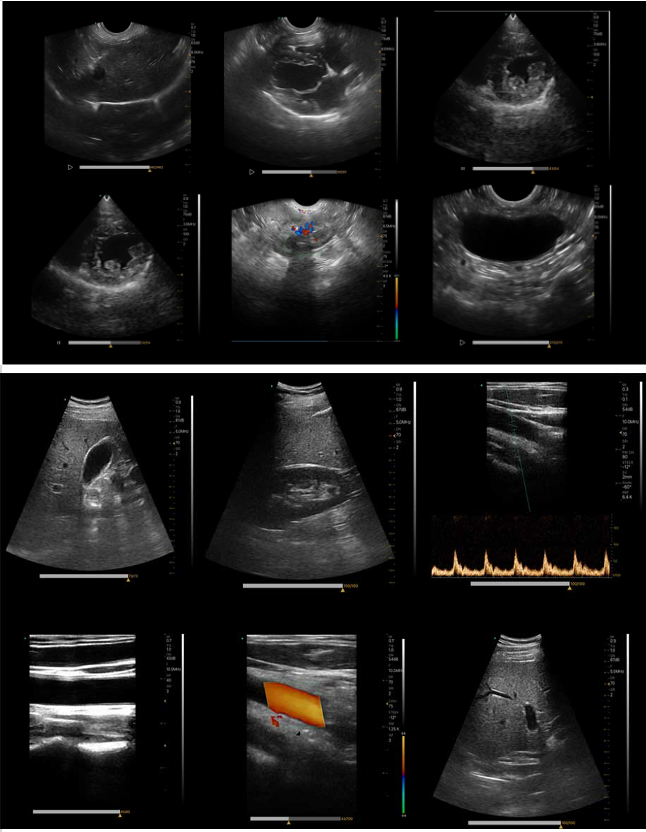

Ultrasound Imaging Examples

Ultrasound images captured with the wireless handheld veterinary ultrasound system for clinical reference.
