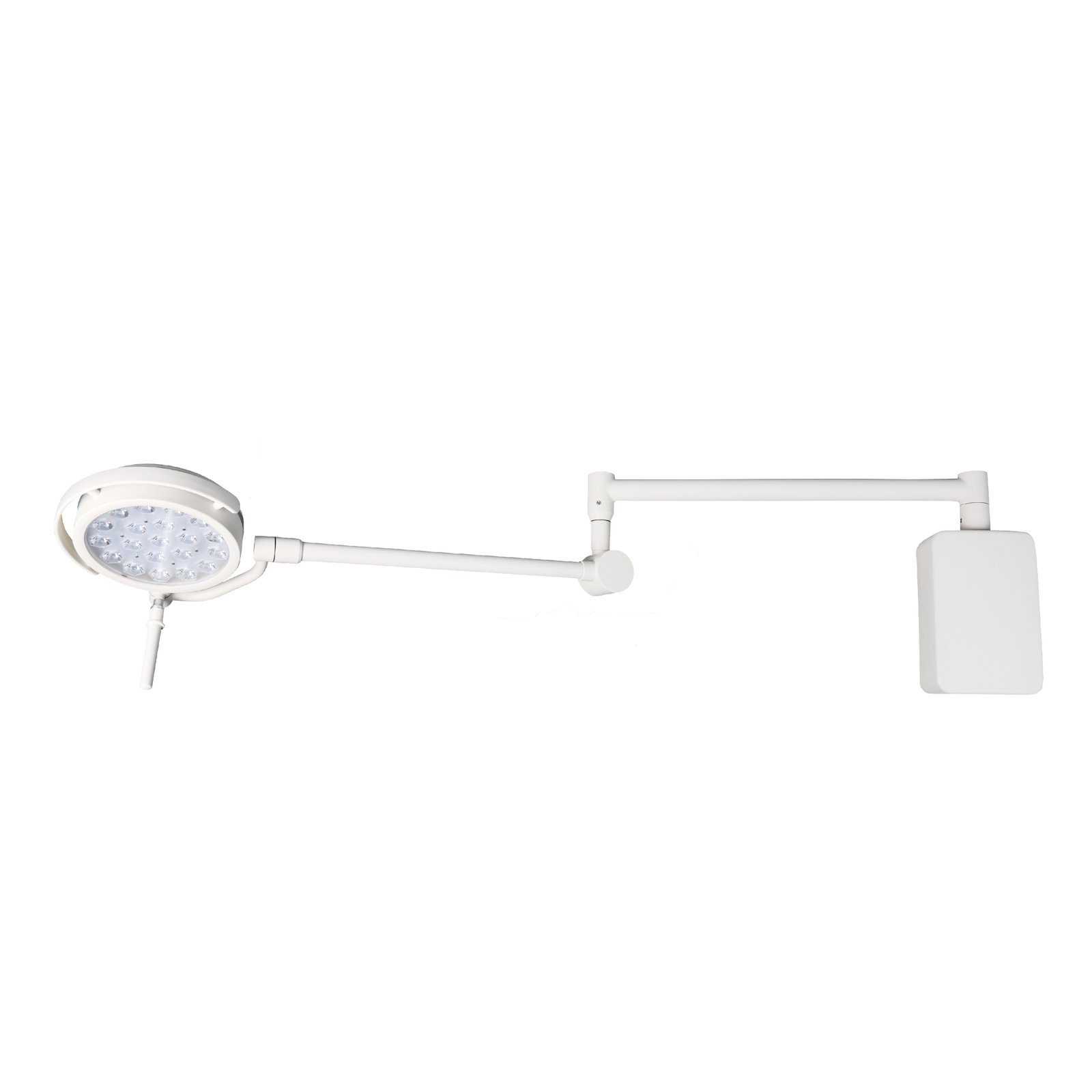

LED veterinary examination light for animal clinic examination rooms and minor procedures

Veterinary LED Examination Light for Clinics and Minor Procedures

Veterinary LED Examination Light for Clinical Procedures

Adjustable LED examination lighting for veterinary clinics, treatment rooms and minor procedures, with up to 99,000 lux, 10 brightness levels and three LED configurations.

Key Highlights

Up to 99,000 lux

Up to 99,000 lux with adjustable brightness across 10 levels

Three LED Configurations

Three LED configurations with different colour temperature and colour rendering characteristics

Flexible Mounting Options

Wall-mounted, ceiling-mounted or mobile configurations

22 cm Light Field

22 cm light field with illumination depth of more than 50 cm

White and Yellow LED Combination

White and yellow LED combination for flexible clinical lighting

Veterinary Examination Light

Designed for Everyday Veterinary Examination

Routine examinations, treatment and minor procedures often need more focused illumination than general room lighting can provide. This LED examination light is intended for veterinary clinics, treatment rooms and outpatient areas where the light needs to be positioned accurately and adjusted to suit different working conditions.

White and yellow LEDs are combined with an individual optical lens system to provide focused illumination and controlled light transmission. Brightness can be adjusted across 10 levels, allowing the light output to be adapted to the procedure and surrounding environment.

Built Around Clinical Workflows

The light can be configured for different installation requirements, including wall-mounted, ceiling-mounted and mobile versions.

Routine veterinary examinations

Outpatient consultation and treatment areas

Minor surgical procedures

Clinical examination rooms requiring focused illumination

Veterinary treatment and procedure areas

What Makes This Configuration Different?

One useful feature of this model is the choice of three LED configurations. The differences are not simply cosmetic. Each configuration has its own LED combination, illumination range, colour temperature and colour rendering characteristics.

Configuration	LED Combination	Illumination	Colour Temperature	Ra
A	15 white + 3 yellow LEDs	9,000–99,000 lux	4,600–5,000 K	95–98.5
B	9 white + 9 yellow LEDs	9,000–90,000 lux	3,900–4,400 K	93–98.5
C	12 white + 6 yellow LEDs	3,700–96,000 lux	4,400–4,600 K	91–98

This gives distributors more than one lighting configuration to consider when different customers have different preferences for illumination, colour temperature or colour rendering.

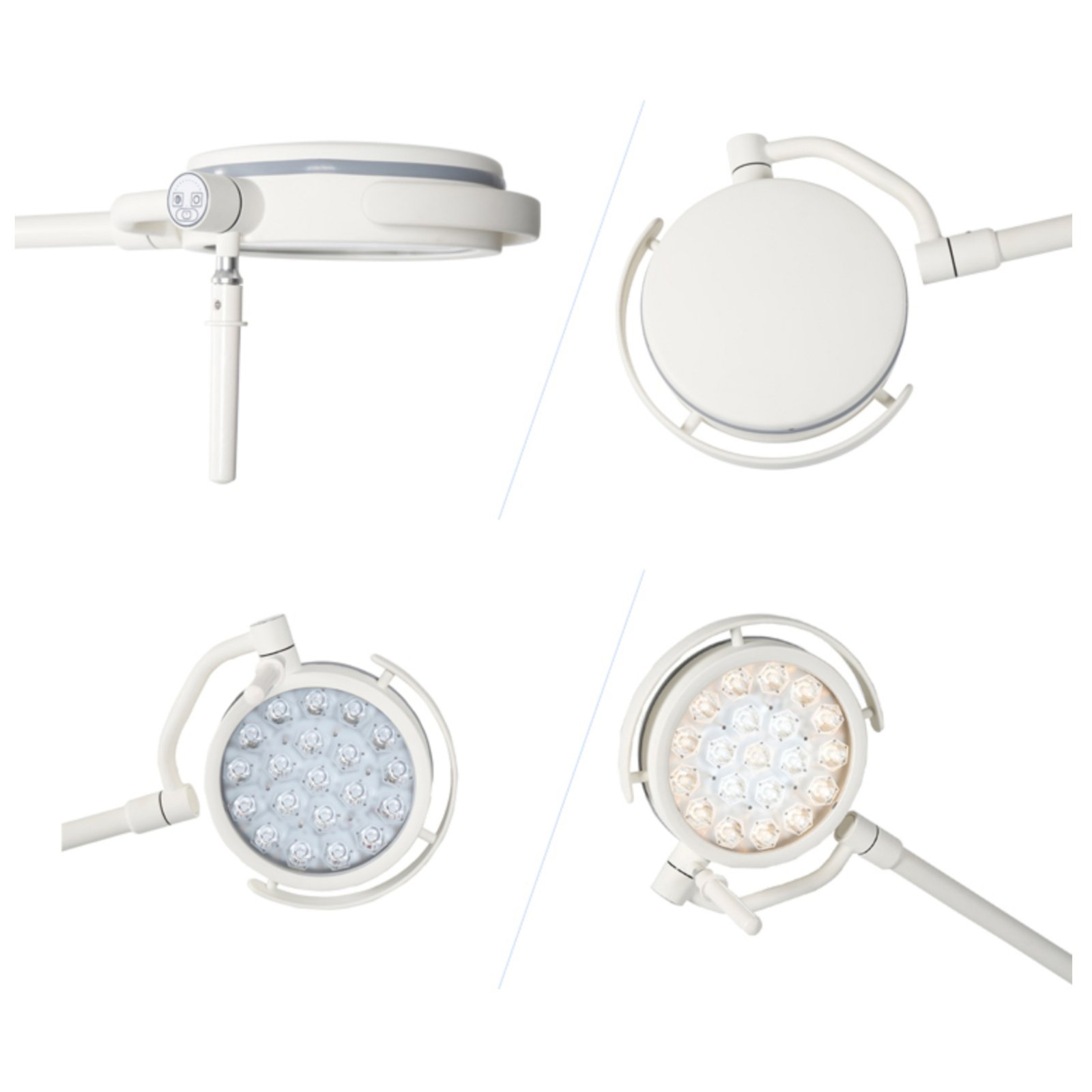

Clinical Design for Daily Use

The lamp housing uses an enclosed aluminium alloy construction, helping to keep the surface easier to clean during routine clinical use.

Individual optical lens system for controlled light transmission and beam direction
Adjustable brightness with 10 intensity levels
Independent spring arm for flexible positioning
Aluminium alloy housing supporting heat dissipation during extended operation
Dual-handle configuration with one operating handle and one spare handle
Simple three-button control panel for power and brightness adjustment

The enclosed housing also helps minimise the accumulation of hair, dust and other contaminants around the light head during routine cleaning.

Technical Specifications

Illumination Intensity

3,700–99,000 lux

Light Field Size

22 cm

Colour Temperature

3,900–5,000 K

Colour Rendering Index (Ra)

91–98.5

Illumination Depth

> 50 cm

Heat-to-Light Ratio

< 3.6 mW/m²·lux

LED Lifetime

> 50,000 hours

Brightness Adjustment

10 levels

Light Head Diameter

20 cm

Power Consumption

60 W

Available Configurations

Configuration A

15 white + 3 yellow LEDs
9,000–99,000 lux
4,600–5,000 K
Ra 95–98.5

Configuration B

9 white + 9 yellow LEDs
9,000–90,000 lux
3,900–4,400 K
Ra 93–98.5

Configuration C

12 white + 6 yellow LEDs
3,700–96,000 lux
4,400–4,600 K
Ra 91–98

A Good Fit For

Veterinary clinics with dedicated examination or treatment rooms
Practices performing routine examinations and minor procedures
Outpatient and consultation areas requiring focused illumination
Distributors looking for an examination light with several LED configuration options
Veterinary facilities where wall, ceiling or mobile installation may be required

Frequently Asked Questions

Is this a surgical light?

It is primarily positioned as a veterinary examination and clinical procedure light. It can support minor surgical procedures, but its intended role is different from a higher-output surgical light designed specifically for operating-room use.

What is the difference between the 22 cm light field and the 20 cm light head?

They describe two different measurements. The 22 cm light field size refers to the illuminated area produced by the light, while the 20 cm light head diameter refers to the physical size of the lamp head itself.

Why are there three LED configurations?

The three configurations use different proportions of white and yellow LEDs, resulting in different illumination ranges, colour temperatures and colour rendering characteristics. This allows the configuration to be selected according to the intended clinical application or customer preference.

Can the brightness be adjusted?

Yes. The light provides 10 brightness levels, allowing the illumination to be adjusted for different examination and treatment conditions.

What installation options are available?

The light can be configured for wall-mounted, ceiling-mounted or mobile installation, depending on the required setup.

How long do the LEDs last?

The specified LED lifetime is more than 50,000 hours.

Is the light suitable for routine cleaning and disinfection?

The enclosed aluminium alloy housing and smooth external design are intended to support routine cleaning and disinfection in veterinary clinical environments. Specific cleaning and disinfection procedures should follow the manufacturer’s instructions.

For Veterinary Equipment Distributors

The three LED configurations make this model useful where customers have different preferences for light output, colour temperature or colour rendering. Installation can also be matched to the layout of the practice through wall-mounted, ceiling-mounted or mobile configurations.

AquaPlat can provide product specifications, available configuration details and relevant documentation to help distributors assess whether this model fits a particular market or customer requirement.

Why Choose AquaPlat

For veterinary distributors and professional users, AquaPlat provides:

✓ Product options aligned with specific market and customer requirements
✓ Technical documentation and product information
✓ Support in comparing configurations and product options
✓ OEM branding support where applicable
✓ Reliable manufacturing and supply coordination

Whether you are expanding your veterinary equipment portfolio or looking for an additional supplier option, we can help you evaluate suitable products for your market and requirements.
